Introducing Actuation

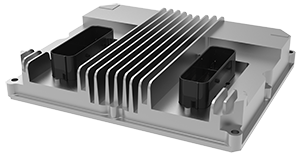

OpenECU™ S090
Automotive OEMs and Tiers 1s are working to improve efficiency in all major systems to meet the ever increasing fuel economy standards. This drive for efficiency improvement leads to ongoing development efforts in the electrification of powertrain and chassis systems. As is the case in many new development programs, there is a gap between the initial “one-off” proof of concepts developed in a laboratory and the product needed for high volume production. The S090 Solenoid and Motor Driver engineering development module helps fill this gap.
As engineering teams develop new systems, the needs for electrification can exceed the capabilities of existing ECUs. Rapid controls prototyping ECUs such as Dana’s OpenECU can be used to develop the controls, but the power requirements for the system will usually exceed the capabilities of an RCP ECU. When you need to bring muscle to your rapid prototype development in a cost effective manner, the S090 Solenoid and Motor Driver engineering development module is designed to be a versatile development tool.
Benefits
- Expands the function of an existing master controller
- Enables rapid prototype development of higher power systems
- Supports controls development for heavy duty actuators
- Evaluate loads and actuations for production circuit optimization
- Cost effectively support fleet trials of new systems
Design
- Designed to meet the needs of development engineers
- Aluminum automotive style sealed housing
- Proven sealed automotive connectors
- Robust electronics circuits suitable for on-vehicle test environment
Capabilities
- Drive up to 8 solenoids up to 10A each
- Solenoid PWM control
- 4 low side and 4 high side solenoid channels
- Drive 1 brushed and 1 brushless DC motor up to 40A
- Two 5V sensor supplies 1A each
- Dual-range current feedback from all output channels for monitoring or data logging
- Applications
Hardware Specifications
POWER | |
Supply Voltage | 9V to 18V |
Sensor Supply | 2x 5V±3% @ 1A |
INPUTS | |
Digital | 23 |
BLDC Motor Direction / Speed / Stop |
3 |
Brushed Motor Direction / Speed / Stop |
3 |
High Side Solenoid Control Command |
4 |
Low Side Solenoid Control Command |
4 |
High Side Solenoid Enable Command |
2 |
BLDC Hall Sensor Inputs | 3 |
OUTPUTS | |
Brushed DC Motor Drive | 1x 40A H-bridge* |
3-Phase Sensored Brushless DC Motor Drive | 1x up to 40A* |
PWM High Side | 4x up to 10A* |
PWM Low Side | 4x up to 10A* |
Temperature Indication | 2 |
PHYSICAL | |
Dimensions (mm) | 235 x 195 x 46 (L x W x H) |
Connector | 2x 46 pin |
Enclosure | Aluminum |
Location | Chassis mount |
ESD | SAE J1113-13 |
Environmental Protection | IP67 |
Operating Temperature | -40°C to 85°C |
*Total current for all outputs not to exceed 40A continuous.
APPLICATIONS
Versatile solenoid and motor drive slave controller to support engineering development programs for electrification of vehicular systems. Designed for any system that uses PWM controlled actuators (valves, solenoids) and/or dc motors (brushed, brushless).
S090 Applications Include:
Electronic differentials | Electronic throttle control |
Motor control | Fuel delivery system control |
Driveline actuators | Variable oil and water pumps |
4WD actuators | eCVT development |
Hydraulic pump and valve control | Aftertreatment pumps and injectors |
VGT position control | EGR actuators |
VVT actuators | Transmission test control |
