OVERVIEW

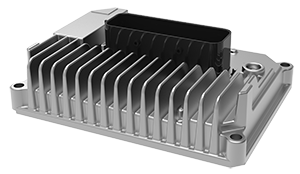

Introducing M22O
Multi-purpose Electronic Control Unit (ECU) with 2x CAN interfaces, precision 12-bit analog inputs, multiple timer inputs suitable for engine control, a selection of medium current outputs and one high current high-side/low-side pair of outputs for precision inductive load control up to 15A. Applications include Engine Control, Engine Control Module (ECM), Fuel System Control, Electric Vehicle (EV) Supervisory Control, Vehicle Control Unit (VCU) and Hybrid Control Unit (HCU)
NOTE: Not recommended for new designs.
Features
- High performance 32-bit Freescale microprocessor
- Supports up to 2 high speed CAN 2.0 A/B (ISO 11898)
- Multiple digital/analog inputs
- Multiple digital/PWM outputs
- Protection against double and reverse battery, load dump, and over-current on outputs
- 12V/24V system voltage
- Open/Short circuit detection on outputs
- Supported platform software: OpenECU
Build Options
At additional cost it is possible to build options that will modify the hardware specification within certain limits.
Custom Variations
Dana engineering services can rapidly develop custom ECUs based on the reusable block designs within OpenECU.
Development Tools
- Simulink™/RTW based development platform
- Simulink™ RTW-Embedded Coder blockset, as well as a C API function library to support C language implementation of code (or TargetLink™)
- Reprogramming via CAN using CCP
- Calibration: ATI Vision™ or Vector CANape
- Processor JTAG port accessible internally
Hardware Specifications
MICROPROCESSOR | |
Processor Freescale | MPC5534 |
Clock Rate | 80Mhz |
Code Space | up to 768KB |
RAM Space | 832KB |
Calibration Space | 256KB |
POWER | |
Supply Voltage | 7V to 32V |
Standby Current | 0.25mA @ 12V |
Sensor Supply | 1 x 5V / 250mA |
COMMUNICATION | |
High Speed CAN 2.0 | 2x |
INPUTS | |
Analog | 12 |
Differential VRS | 1 x (2 pins) |
Single Ended VRS | 2 |
Frequency | 1 |
Digital | 4 |
FEPS | 1 |
Cam Shaft | 2x ±157V |
Crank Shaft | 1x ±157V |
OUTPUTS | |
H-Bridge | 1 (2 pins) – 5A |
High Side Switch | 1 x 15A |
PWM Low Side | 2 x 100mA |
PWM Low Side | 2 x 250mA |
PWM Low Side | 6 x 2A |
Low Side Injector | 1 x 15A / 5A (software configurable) |
COMPATIBILITY | |
Vibration | 6g random RMS |
PHYSICAL | |
Dimensions (mm) | 155 x 115 x 39 |
Weight | 520g |
Connector | 46 pin |
Enclosure | Aluminum |
Location | Chassis mount |
Operating Temperature | -40°C to 105°C |
Environmental Protection | IP69K |
APPLICATIONS
M220 Applications Include:
Application | Description |
LPG / CNG / LNG Fuel System Controller | Alternative fuel systems like LPG, CNG or LNG provide enhanced fuel economy and maintain exhaust emission levels. As a Fuel System Controller or Alternative Fuel Control Module (AFCM) the M220 can be used for fuel injection, high pressure tank control and fuel system monitoring or control. |
Various novel / experimental engine technologies | Modular architecture of OpenECU platform software and M220 ECU can be used for engine development and testing by developing model based control software. |
Engine Control Module | M220 can be used for two-stroke engine control design and development. |
Active Damping Control System | Enhanced safety, stability and ride control can be achieved with active damping control system with the M220. |
Motor Controller | The combination of M220 and S090, can be used for PWM controlled actuators and/or DC motors (brushed or brushless). |
BLOCK DIAGRAM
CASE STUDIES
DOWNLOADS
- M220 Flyer
- M220 Technical Specification
- M220 Solid Model
- M220 Pigtail Harness
- M220 IO Schematics
- M220 Customer Interface Drawing
- M220 Customer Pinout
To view the complete list of our product downloads, please click here.
MODULE COMPARISON
Compare ALL OpenECU Modules
M110 | M130 | M211 | M220 | M6 Family | M670 | Actuation | M560 | M580 | |||||||||||
Microprocessor | |||||||||||||||||||
Primary Processor | SPC5534 | SPC5746B | MPC5534 | MPC5534 | MPC5534 | MPC5674F | MPC5746B | SPC5746 | SPC5746 | ||||||||||
Primary Clock Rate | 80MHz | 80MHz | 80MHz | 80MHz | 80MHz | 264MHz | 160MHz | 160MHz | 160MHz | ||||||||||
Primary Code Space | 512KB | 3MB | 768KB | 768KB | 512KB | 3MB | 2302KB | 3MB | 3MB | ||||||||||
Primary RAM Space | 64KB | 256kB | 832KB | 832KB | 64KB | 128kB | 384KB | 256KB | 256KB | ||||||||||
Primary Calibration Space | 256KB | 256kB | 236KB | 256KB | 256KB | 128kB | 128KB | 256KB | 256KB | ||||||||||
Secondary Processor | SPC560P34 | SPC560P34 | SPC560P34 | ||||||||||||||||
Secondary Clock Rate | 64MHz | 64MHz | 64MHz | ||||||||||||||||
Secondary Flash Space | 192KB | 192KB | 192KB | ||||||||||||||||
Secondary Calibration Space | 20KB | ||||||||||||||||||
Secondary RAM Space | 12KB | 12KB | |||||||||||||||||
M110 | M130 | M211 | M220 | M6 Family | M670 | Actuation | M560 | M580 | |||||||||||
Power | |||||||||||||||||||
Operating Voltage | 9V to 32V | 8V to 32V | 7V to 32 V | 7V to 32 V | 12V or 24V | 8V to 18V | 8V to 18V | 8V to 18V | |||||||||||
Sensor Supply | 1x 5V @250mA | 1x | 1 x 5V / 250mA | 1 x 5V / 250mA | 2x 5V@250mA | 4x 250mA @ 5V | none | 2x 5V @200mA | 2x 5V @200mA | ||||||||||
Standby Current | 0.25mA @12V | 0.25mA @ 12V | |||||||||||||||||
Actuator Supplies | 1x 20A | 2x 10A @ Vbatt | |||||||||||||||||
Output Protection | Short to Battery, Ground | ||||||||||||||||||
Battery Input Protection | Overvoltage, Reverse Voltage | ||||||||||||||||||
Survive Voltage | -28V to 36V | ||||||||||||||||||
M110 | M130 | M211 | M220 | M6 Family | M670 | Actuation | M560 | M580 | |||||||||||
Communication | |||||||||||||||||||
High Speed CAN 2.0 | 2x | 4x | 2x | 2x | 2x | 4x | 1x | 4x | 4x | ||||||||||
LIN (master)2 | 2x | ||||||||||||||||||
M110 | M130 | M211 | M220 | M6 Family | M670 | Actuation | M560 | M580 | |||||||||||
Inputs | |||||||||||||||||||
Inputs (Analog or Digital) | 10x | 6x | 9x | 16x | 18x (Digital: 6x; Analog: 12x) | 40x (Digital: 5x switched, 3x Frequency, PWM; Analog: 32) | 4x | 40x (Digital: 9x switched, 3x PWM; Analog: 28) | 44x (Digital: 9x switched, 3x PWM; Analog: 32) | ||||||||||
Reprogramming Enable (FEPS) | 1x @ -18V | 1x @ -18V | 1x @ -18V | 1x @ -18V | 1x @ -18V | 4x | |||||||||||||
Differential VRS | 1x (2 pins) | ||||||||||||||||||
Single Ended VRS | 2x | ||||||||||||||||||
Frequency | 1x | ||||||||||||||||||
Cam Shaft | 2x ±157V | 4x Hall only | |||||||||||||||||
Crank Shaft | 1x ±157V | 1x Hall (VR option) | |||||||||||||||||
RTD Sensor | 7x | 4x | |||||||||||||||||
Knock Sensor | Knock Sensor | ||||||||||||||||||
Lamda Sensor (UEGO) | 2x | ||||||||||||||||||
Lamda Sensor (HEGO) | 4x (only 2x available when using 2x UEGO) | ||||||||||||||||||
Ignition Sense | 1x | 1x | 1x | ||||||||||||||||
M110 | M130 | M211 | M220 | M6 Family | M670 | Actuation | M560 | M580 | |||||||||||
Outputs | |||||||||||||||||||
Low Current Low Side Drives | Up to 1x 20mA & 2x 100mA & 6x 500mA | Up to 6x 500mA LSD | 12x 100mA, 3x 400mA, 14x 700mA, 2x 1A | 11x 100mA, 4x 400mA, 14x 700mA, 2x 1A | |||||||||||||||
Medium Current Low Side Drives | Up to 4x 2A | Up to 4x 2A LSD | |||||||||||||||||
High Current Low Side Drives | 4x 2.2A, 1x 3.2A | 4x 2.2A, 1x 3.2A | |||||||||||||||||
0-5 V Analog Output | Up to 2x 10mA | Up to 2x 10mA | |||||||||||||||||
PWM Low Side | 2x 100mA | 2x 100mA, 2x 250mA & 6x 2A | |||||||||||||||||
H-Bridge | 1x 5A | 2x 8A | 1x 5A full-bridge & 2x 10A full-bridge or 4x 10A half-bridge | 2x 50A peak or 10A | 1x 10A, 2x 5A, 1x 3.2A | 1x 10A, 2x 5A, 1x 3.2A | |||||||||||||
High Side Switch | 1x 15A | 1x Hall (VR option) | |||||||||||||||||
Low Side Injector | 1x 15A or 5A | 3x 5A peak/ 2A hold | 8x software-programmable waveform peak-and-hold: nominal 25A peak, 15A hold | ||||||||||||||||
Current Monitors | 2x | ||||||||||||||||||
Voltage Monitors | 2x | ||||||||||||||||||
High Side Logic Outputs | 2x 1mA | 2x 1mA | |||||||||||||||||
High Side Outputs | 4x 700mA | 4x 700mA | |||||||||||||||||
Low Side General Purpose, PWM (SM, VM, CTM) | 1x 10A, 1x 2A, 1x 500mA | 9x 0.2/0.5A lamp & relay, with monitoring of state, voltage, and fault status | |||||||||||||||||
Low-side General Purpose, Spark (SM) | 1x 8A | 8x (Smart Coil only) with monitoring of state; on-off mode for non-spark uses | |||||||||||||||||
High-side Injector sources | 2x Injector High-Side outputs with programmable boost voltage phase, 25A peak | ||||||||||||||||||
Low side GP (General Purpose) (VM, CTM) | 1x 8A, 2x 6A peak / 4A hold, with voltage and current-tripped monitoring | ||||||||||||||||||
High-side GP (General Purpose) (CM) | 2x 8A up to 85°C, intended for source to low-side outputs, with current monitoring | ||||||||||||||||||
Constant-Current (with inductive actuator) | 8x 2A | ||||||||||||||||||
M110 | M130 | M211 | M220 | M6 Family | M670 | Actuation | M560 | M580 | |||||||||||
Compatibility | |||||||||||||||||||
Vibration | ISO 16750-3 | ISO 16750-3 | 6g random RMS | 6g random RMS | Ford IIIB - Severe | ISO 16750-3 | IEC 60068-2-64 | ISO 16750 chassis mount | ISO 16750 chassis mount | ||||||||||
Environmental Protection | IP67 - Sealed | IP67 – sealed | IP67 | IP69K | IP67 Sealed/Gore vent | IP69K | IP69K & IPx8 Sealed/Gore vent | IP69K Sealed/Gore Vent | IP69K Sealed/Gore Vent | ||||||||||
ESD | ±8kV - SAE J1113-13 | SAE J1113-13 | |||||||||||||||||
Conducted and Radiated Emissions | CISPR25 Class 2 | CISPR25 Class 2 | |||||||||||||||||
Conducted Transients | ISO 7637-2 | ISO 7637-2 | |||||||||||||||||
Bulk Current Injection Immunity | ISO 11452-4 | ISO 11452-4 | |||||||||||||||||
M110 | M130 | M211 | M220 | M6 Family | M670 | Actuation | M560 | M580 | |||||||||||
Physical | |||||||||||||||||||
Material | Plastic (PPA GF33) | PPA GF33 | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | ||||||||||
Dimension in mm (W x H x D) | 138 x 130 x 42 | 138 x 130 x 42 mm (L x W x H) | 155 x 115 x 46 | 155 x 115 x 39 | 228 x 158 x 50 | 266 x 299 x 56.5 | 207 x 104 x 45 | 225 x 205 x 45 | 225 x 205 x 45 | ||||||||||
Weight | 520g | 520g | 1.02 kg | 2.5 kg | 540g | 1.1 kg | 1.1 kg | ||||||||||||
Connectors | 2 x 20 pin (Molex MX-150) | 2 x 20 pin (Molex MX-150) | 46 pin | 46 pin | 46 pin | Molex CMC 154-pin, 3-pocket | 1x 23 TE (AMSEAL) | Molex 112pin (1x 48, 2x 32) | Molex 112pin (1x 48, 2x 32) | ||||||||||
Location | Chassis mount | Chassis mount | Chassis mount | Engine Compartment/ Chassis | Engine Compartment / Chassis | Passenger Compartment | Chassis/Passenger Compartment | Chassis/Passenger Compartment | |||||||||||
Operating Temperature | ISO 16750-4 (-40°C to 85°C) | -40°C to 85°C | -40°C to 85°C | -40°C to 85°C | -40°C to 85°C | -40°C to 85°C | -40°C to 85°C | -40°C to 85°C | -40°C to 85°C | ||||||||||
M110 | M130 | M211 | M220 | M6 Family | M670 | Actuation | M560 | M580 | |||||||||||
Other | |||||||||||||||||||
Program Status LED drive | 1x | ||||||||||||||||||
Reprogramming Enable In | 1x @18V |
