OVERVIEW

Introducing M25O

The M250 module is a compact electronics module that is suited to computationally intensive applications requiring a chassis mounted, sealed metal housing with IP67 environmental protection. Based on the same Freescale MPC5534 32-bit microcontroller as the M460, the M250 features 2 CAN interfaces, precision analogue 12-bit inputs and configurable high current switching outputs. A group of inputs and outputs are particularly suited emissions control applications with appropriate sensor signal conditioning and drive characteristics.

NOTE: Not recommended for new designs.

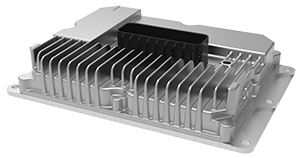

OpenECU™ M250

Build Options

At additional cost it is possible to build options that will modify the hardware specification within certain limits.

Custom Variations

Dana engineering services can rapidly develop custom ECUs based on the resusable block designs within OpenECU.

Optional Capabilities

  • Daughter card slot
  • 128K EEPROM
  • Wakeup from CAN interrupt
  • Secondary microprocessor

Development Tools

  • Simulink™/RTW based development platform
  • Simulink™ RTW-Embedded Coder blockset, as well as a C API function library to support C-language implementation of code (or TargetLink™)
  • Reprogramming via CAN using CCP
  • Calibration: ATI Vision™ or Vector CANape
  • Processor JTAG port accessible internally

Capabilities

Status Released
Processor MPC5534
Clock Rate 80MHz
Code Space 512KB
RAM Space 64KB
Calibration Space 256KB
Actuator Supplies 1x 20A
Sensor Supplies 2x 5V@250mA (VM)
Input Pins 20
Output Pins 11
Communications 2x CAN 2.0
Single-ended 6x 12-bit unsigned (+ 6x selectable from # )
RTD Sensor 7x 12-bit unsigned
Ignition Sense 1
Digital, Frequency, PWM 6x 0V to Vpwr (#)
H-Bridge or 2x high + low side (SM, VM, CM, CTM) 2x 8A
Low side GP, PWM (SM, VM, CM, CTM) 1x 10A 1x 2A (+ 3x 5A selectable from $ )
Low side GP, PWM (SM, VM) 1x 500mA
Low side GP, Spark (SM, VM, CTM) 1x 8A
Low side GP, Injector (SM, VM, CM) 3x 5A peak/ 2A hold ($)
Internal Features Daughter board slot
Optional Features 128K EEPROM Watchdog processor CAN wakeup
Dimensions (mm) 228x158x50
Material Aluminum
Weight 1.02Kg
Connectors 1x 46
Vibration Ford IIIB – Severe (On or Near Suspension Mounting Points)
Environmental Protection IP67 Sealed/Gore-tex® vent
Location Engine Compartment/ Chassis
Supply Voltage (normal operation) 6.5 – 36V



APPLICATIONS

M250 Applications Include:

Application Description
Diesel exhaust after-treatment M250 is suited for basic aftertreatment systems that utilize a combination of Diesel Oxidation Catalyst (DOC) and Diesel Particulate Filter (DPF) to control carbon monoxide and particulate matter.
Electric Vehicle Control M250 can be used for electric vehicle supervisory control development interacting with battery, inverter, motor drive and other vehicle systems to provide drive control, torque management, for electric vehicles
Active Damping Control System Enhanced safety, stability and ride control can be achieved with active damping control system with the M250
Aerodynamic actuator control M250 can be used for an active aerodynamic control system for rear spoiler deployment and vehicle ride height adjustment to provide increased traction and stability at high-speed without significantly increasing aerodynamic drag or adversely affecting low-speed ride and handling qualities.

BLOCK DIAGRAM



For complete M250 Pinout download, click here.
This is a default configuration, optional configuration available, please contact us.
For a full list of downloads click here.



CASE STUDIES

DOWNLOADS

MODULE COMPARISON

Compare ALL OpenECU Modules

Scroll to view full table
Primary Processor SPC5534 SPC5746B MPC5534 MPC5534 MPC5534 MPC5674F MPC5746B SPC5746 SPC5746
Primary Clock Rate 80MHz 80MHz 80MHz 80MHz 80MHz 264MHz 160MHz 160MHz 160MHz
Primary Code Space 512KB 3MB 768KB 768KB 512KB 3MB 2302KB 3MB 3MB
Primary RAM Space 64KB 256kB 832KB 832KB 64KB 128kB 384KB 256KB 256KB
Primary Calibration Space 256KB 256kB 236KB 256KB 256KB 128kB 128KB 256KB 256KB
Secondary Processor SPC560P34 SPC560P34 SPC560P34
Secondary Clock Rate 64MHz 64MHz 64MHz
Secondary Flash Space 192KB 192KB 192KB
Secondary Calibration Space 20KB
Secondary RAM Space 12KB 12KB
Operating Voltage 9V to 32V 8V to 32V 7V to 32 V 7V to 32 V 12V or 24V 8V to 18V 8V to 18V 8V to 18V
Sensor Supply 1x 5V @250mA 1x 1 x 5V / 250mA 1 x 5V / 250mA 2x 5V@250mA 4x 250mA @ 5V none 2x 5V @200mA 2x 5V @200mA
Standby Current 0.25mA @12V 0.25mA @ 12V
Actuator Supplies 1x 20A 2x 10A @ Vbatt
Output Protection Short to Battery, Ground
Battery Input Protection Overvoltage, Reverse Voltage
Survive Voltage -28V to 36V
High Speed CAN 2.0 2x 4x 2x 2x 2x 4x 1x 4x 4x
LIN (master)2 2x
Inputs (Analog or Digital) 10x 6x 9x 16x 18x (Digital: 6x; Analog: 12x) 40x (Digital: 5x switched, 3x Frequency, PWM; Analog: 32) 4x 40x (Digital: 9x switched, 3x PWM; Analog: 28) 44x (Digital: 9x switched, 3x PWM; Analog: 32)
Reprogramming Enable (FEPS) 1x @ -18V 1x @ -18V 1x @ -18V 1x @ -18V 1x @ -18V 4x
Differential VRS 1x (2 pins)
Single Ended VRS 2x
Frequency 1x
Cam Shaft 2x ±157V 4x Hall only
Crank Shaft 1x ±157V 1x Hall (VR option)
RTD Sensor 7x 4x
Knock Sensor Knock Sensor
Lamda Sensor (UEGO) 2x
Lamda Sensor (HEGO) 4x (only 2x available when using 2x UEGO)
Ignition Sense 1x 1x 1x
Low Current Low Side Drives Up to 1x 20mA & 2x 100mA & 6x 500mA Up to 6x 500mA LSD 12x 100mA, 3x 400mA, 14x 700mA, 2x 1A 11x 100mA, 4x 400mA, 14x 700mA, 2x 1A
Medium Current Low Side Drives Up to 4x 2A Up to 4x 2A LSD
High Current Low Side Drives 4x 2.2A, 1x 3.2A 4x 2.2A, 1x 3.2A
0-5 V Analog Output Up to 2x 10mA Up to 2x 10mA
PWM Low Side 2x 100mA 2x 100mA, 2x 250mA & 6x 2A
H-Bridge 1x 5A 2x 8A 1x 5A full-bridge & 2x 10A full-bridge or 4x 10A half-bridge 2x 50A peak or 10A 1x 10A, 2x 5A, 1x 3.2A 1x 10A, 2x 5A, 1x 3.2A
High Side Switch 1x 15A 1x Hall (VR option)
Low Side Injector 1x 15A or 5A 3x 5A peak/ 2A hold 8x software-programmable waveform peak-and-hold: nominal 25A peak, 15A hold
Current Monitors 2x
Voltage Monitors 2x
High Side Logic Outputs 2x 1mA 2x 1mA
High Side Outputs 4x 700mA 4x 700mA
Low Side General Purpose, PWM (SM, VM, CTM) 1x 10A, 1x 2A, 1x 500mA 9x 0.2/0.5A lamp & relay, with monitoring of state, voltage, and fault status
Low-side General Purpose, Spark (SM) 1x 8A 8x (Smart Coil only) with monitoring of state; on-off mode for non-spark uses
High-side Injector sources 2x Injector High-Side outputs with programmable boost voltage phase, 25A peak
Low side GP (General Purpose) (VM, CTM) 1x 8A, 2x 6A peak / 4A hold, with voltage and current-tripped monitoring
High-side GP (General Purpose) (CM) 2x 8A up to 85°C, intended for source to low-side outputs, with current monitoring
Constant-Current (with inductive actuator) 8x 2A
Vibration ISO 16750-3 ISO 16750-3 6g random RMS 6g random RMS Ford IIIB - Severe ISO 16750-3 IEC 60068-2-64 ISO 16750 chassis mount ISO 16750 chassis mount
Environmental Protection IP67 - Sealed IP67 – sealed IP67 IP69K IP67 Sealed/Gore vent IP69K IP69K & IPx8 Sealed/Gore vent IP69K Sealed/Gore Vent IP69K Sealed/Gore Vent
ESD ±8kV - SAE J1113-13 SAE J1113-13
Conducted and Radiated Emissions CISPR25 Class 2 CISPR25 Class 2
Conducted Transients ISO 7637-2 ISO 7637-2
Bulk Current Injection Immunity ISO 11452-4 ISO 11452-4
Material Plastic (PPA GF33) PPA GF33 Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Dimension in mm (W x H x D) 138 x 130 x 42 138 x 130 x 42 mm (L x W x H) 155 x 115 x 46 155 x 115 x 39 228 x 158 x 50 266 x 299 x 56.5 207 x 104 x 45 225 x 205 x 45 225 x 205 x 45
Weight 520g 520g 1.02 kg 2.5 kg 540g 1.1 kg 1.1 kg
Connectors 2 x 20 pin (Molex MX-150) 2 x 20 pin (Molex MX-150) 46 pin 46 pin 46 pin Molex CMC 154-pin, 3-pocket 1x 23 TE (AMSEAL) Molex 112pin (1x 48, 2x 32) Molex 112pin (1x 48, 2x 32)
Location Chassis mount Chassis mount Chassis mount Engine Compartment/ Chassis Engine Compartment / Chassis Passenger Compartment Chassis/Passenger Compartment Chassis/Passenger Compartment
Operating Temperature ISO 16750-4 (-40°C to 85°C) -40°C to 85°C -40°C to 85°C -40°C to 85°C -40°C to 85°C -40°C to 85°C -40°C to 85°C -40°C to 85°C -40°C to 85°C
Program Status LED drive 1x
Reprogramming Enable In 1x @18V
